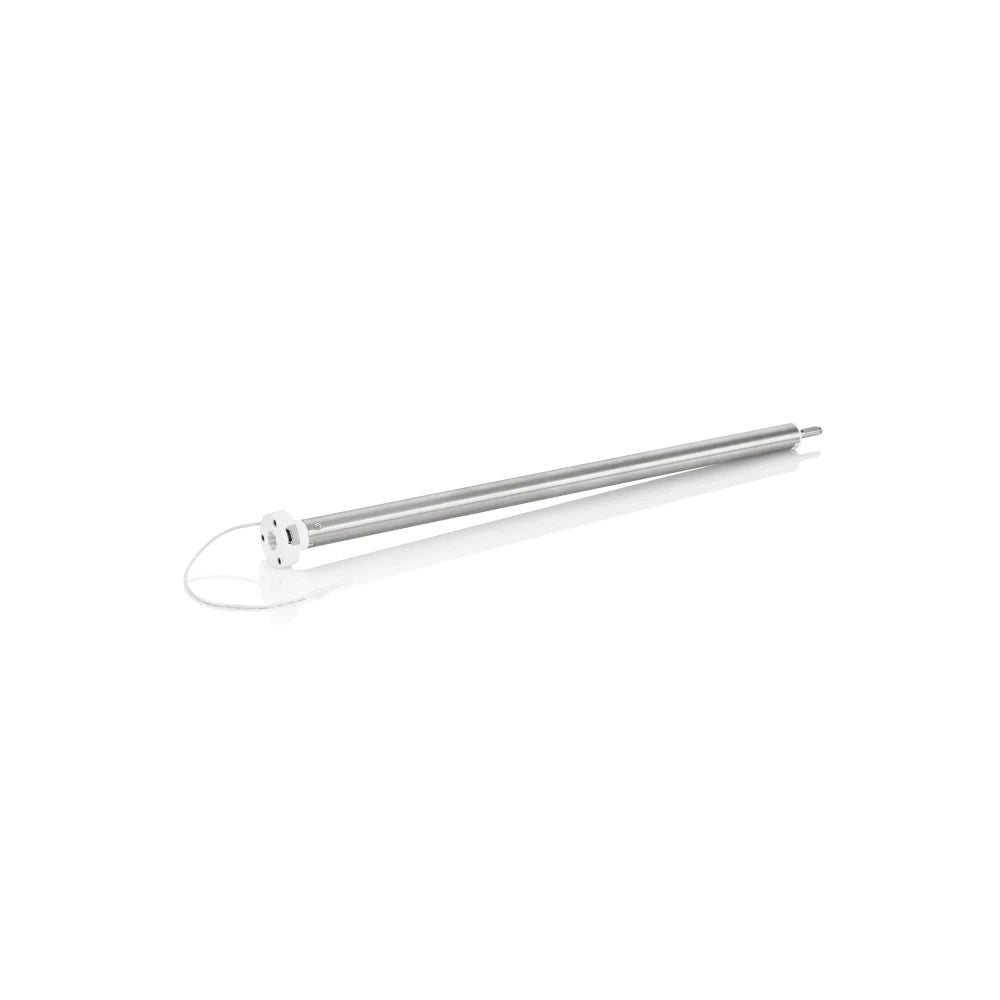

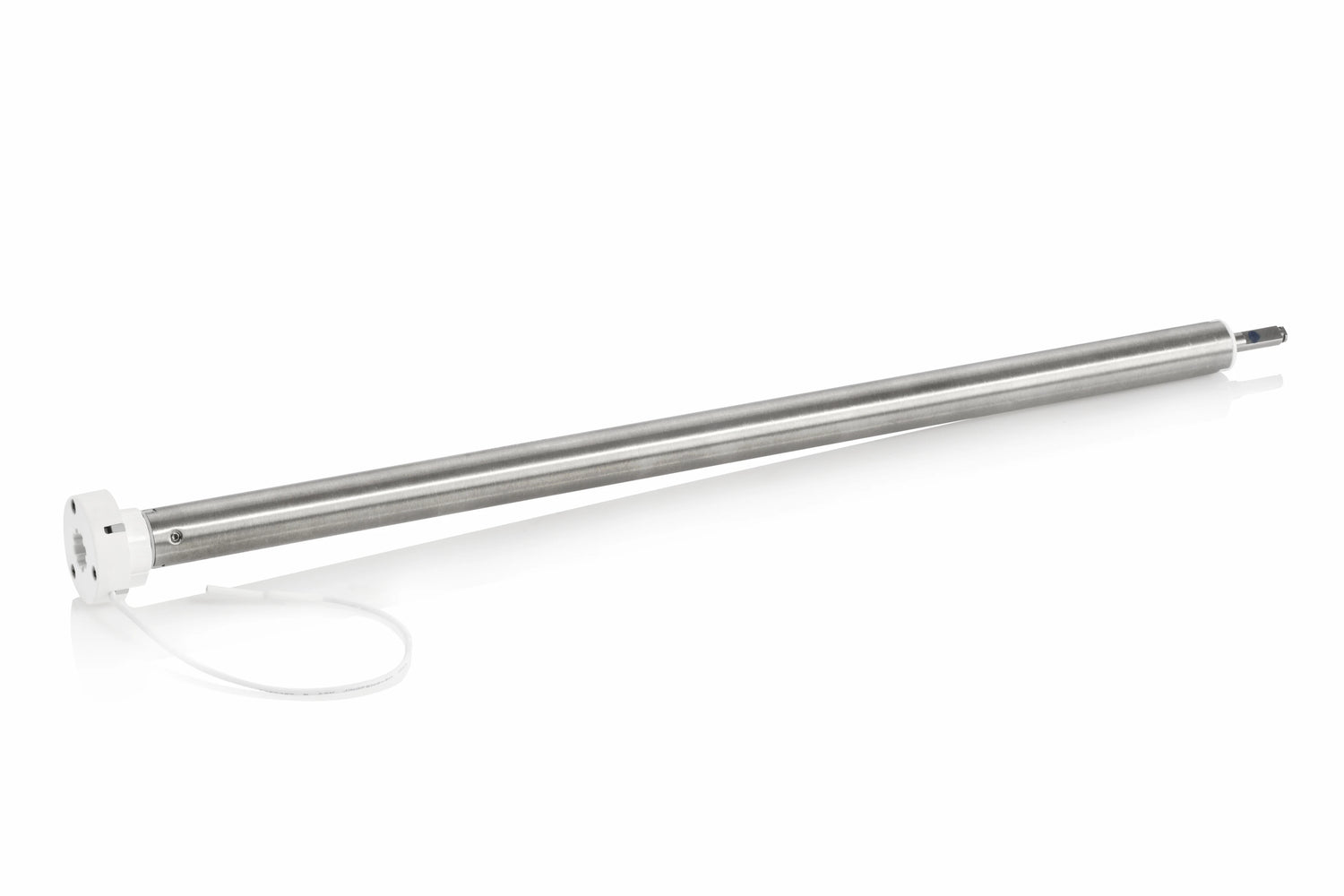

Battery-powered roller motor ERBS15LE

Cordless battery-powered roller blind drive for easy retrofitting

The ERBS15LE battery-powered roller motor is the perfect solution for easily automating existing roller blinds. Thanks to the integrated battery, operation is wireless – no power connection is required. This makes the drive ideal for retrofitting in any room, without extensive installation work.

Flexible application possibilities

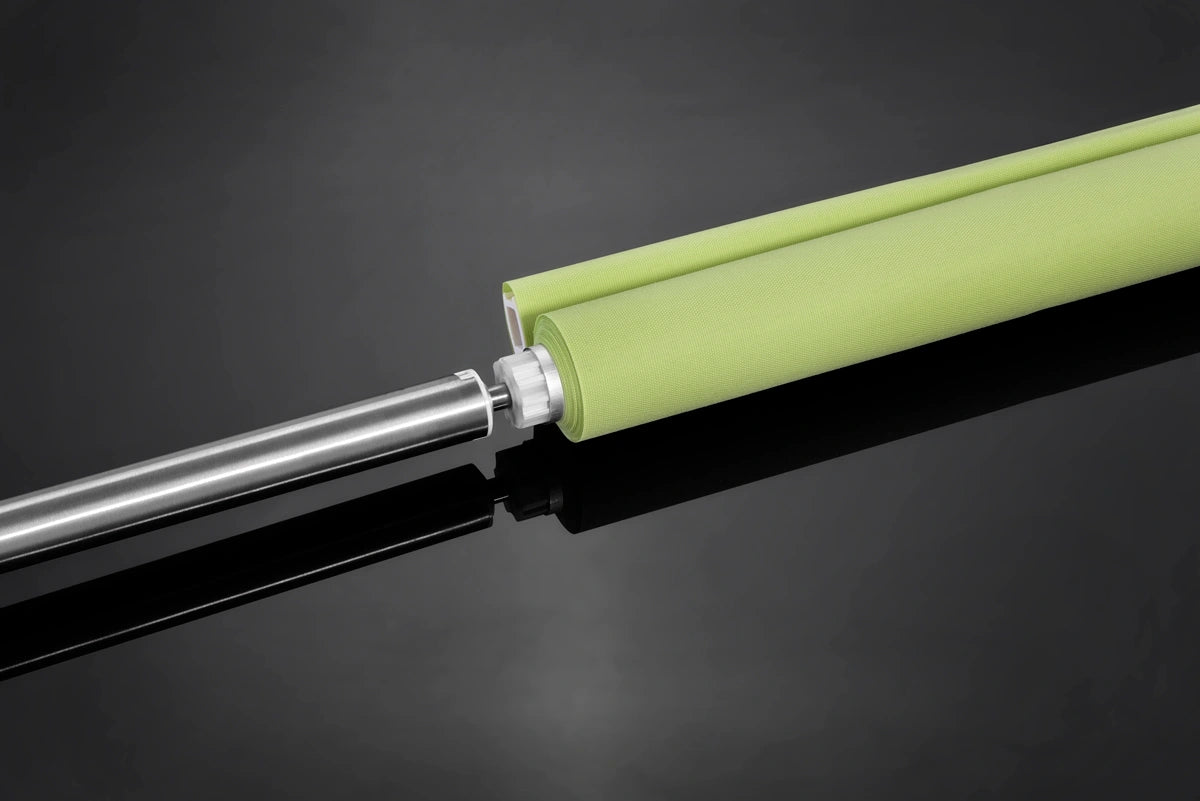

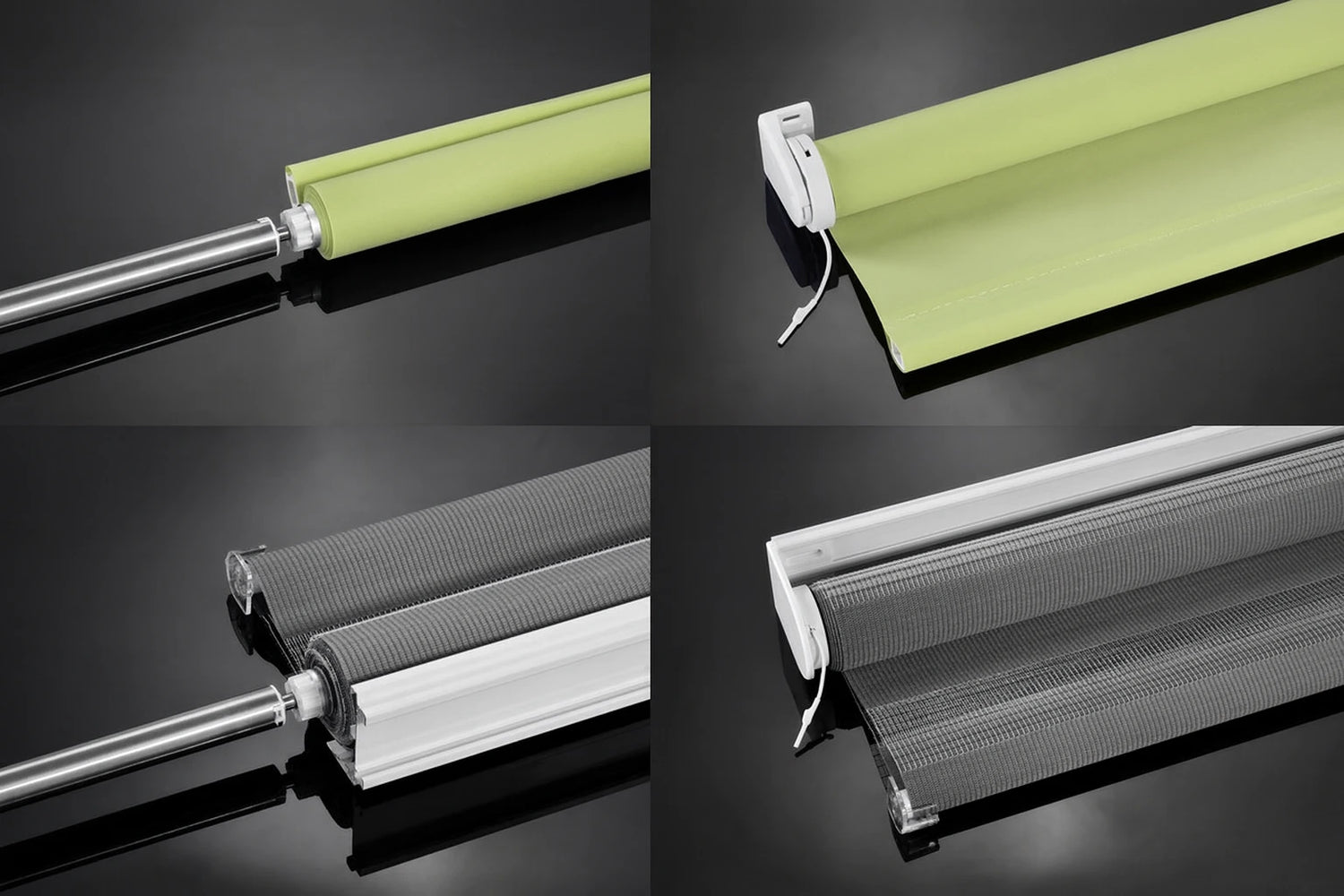

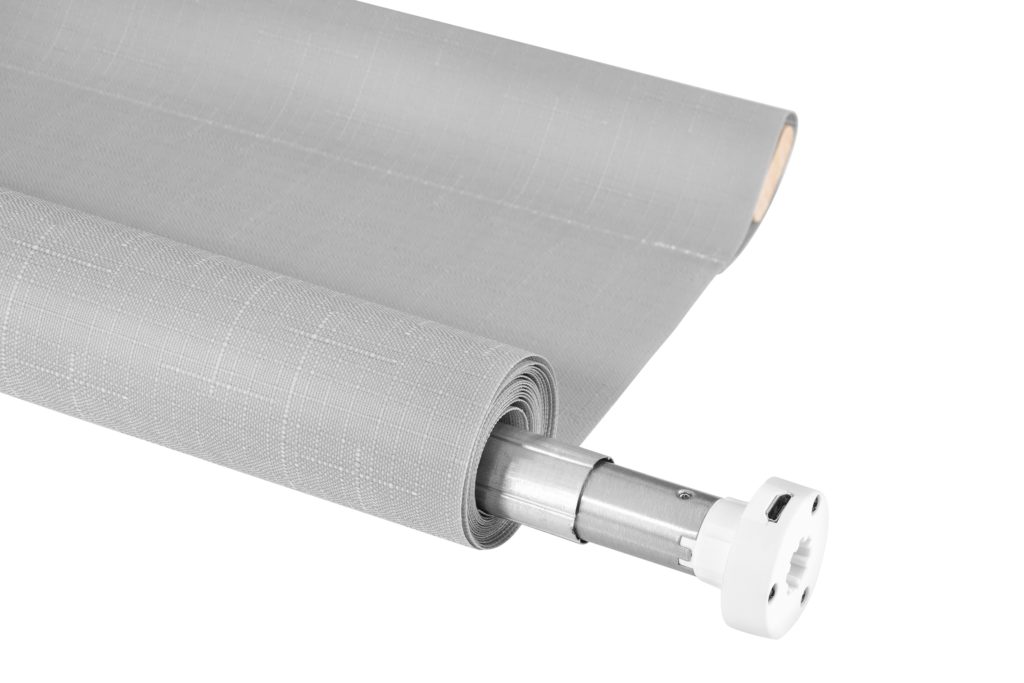

The motor is designed for roller blinds weighing up to 2.5 kg and up to 2 meters wide. Its universal design makes it compatible with common roller tube diameters of 17 mm, 24 mm, and 28 mm (±0.5 mm). This allows it to be integrated into numerous standard roller blinds, including those from manufacturers such as Gardinia, Victoria M, or IKEA.

Control via radio transmitter and Smart Home

The operation is flexible and can be carried out simultaneously via radio hand transmitter and a smart control center. The hand transmitter allows for individual and group control, as well as setting the limit positions. Using the Connector app, you connect the Siro control center directly to your smartphone or tablet, define individual scenarios and schedules, and then seamlessly integrate the roller motor into systems such as Apple Siri, Google Home, Amazon Alexa, and IFTTT. This allows you to control your roller blinds not only via app, but also via voice command – for maximum flexibility.

Energy-efficient and low-maintenance

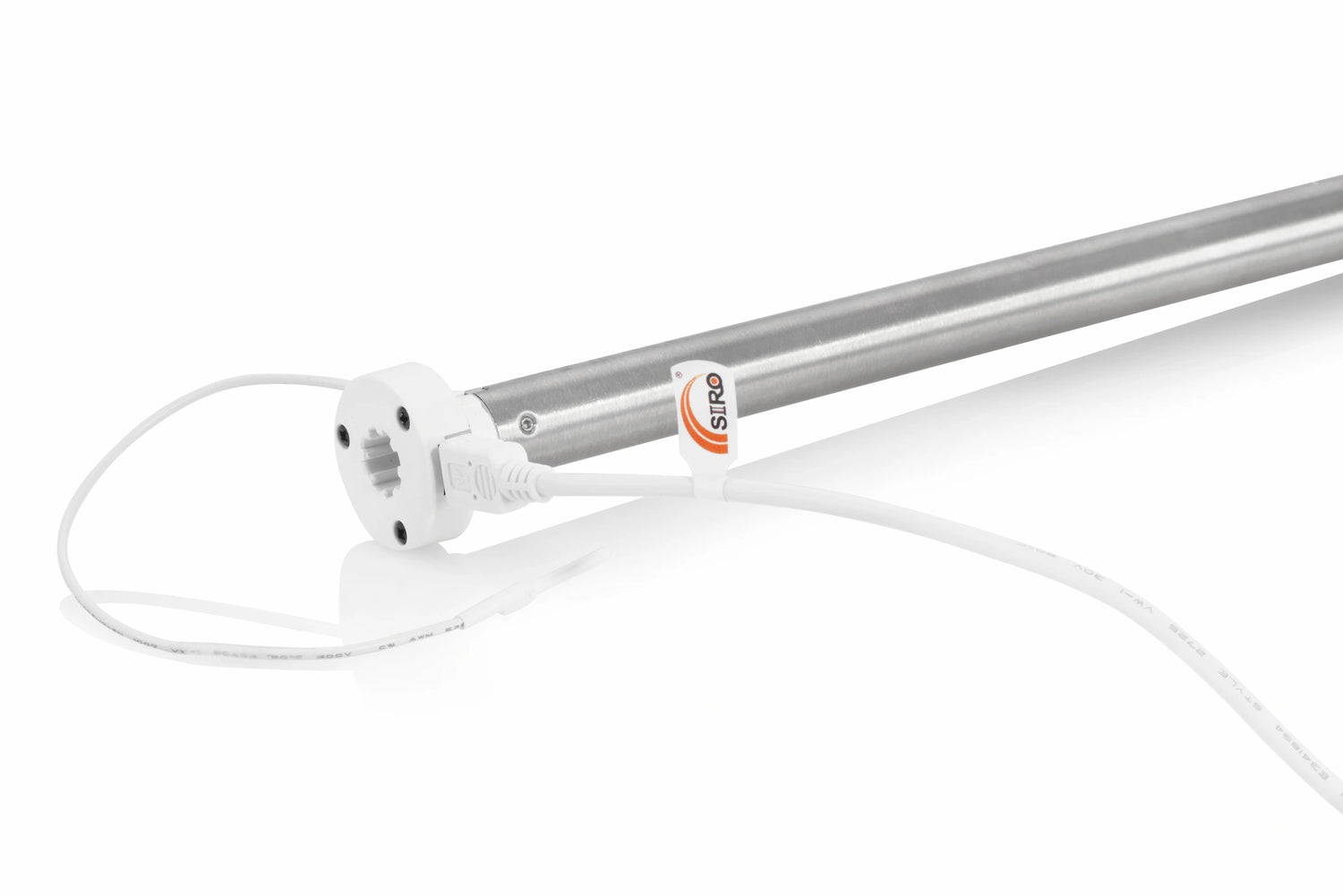

The integrated battery ensures reliable performance and allows for long operating times. The motor can be easily recharged at any time using the supplied USB cable. This ensures that use remains consistently convenient and cost-effective.

Intelligent automation for greater living comfort.

Whether time-controlled processes, individual scenarios or integration into the smart home – with the battery-powered roller motor you increase the comfort and energy efficiency in your home. Experience modern roller shutter automation that adapts optimally to your needs.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* No guarantee given

Scope of delivery

• 1x battery-powered roller blind motor
• 1x selected adapter set
• 1x metal PIN driver
• Blind mounting not included

Technical details

• Length: 370mm
• Weight: 150g
• Motor diameter: 16mm
• Protection class: IP20
• Torque: 0.3 Nm
• Speed: 30 rpm
• Power: 5W
• Current consumption: 0.60A

Compatible with the Smart Life app?

No, our "Smart Rollos" drives can only be controlled via the "Connector" app, and subsequently via Alexa, Google Home, etc. A Siro control unit is required for connection.

Which roller blinds is the motor suitable for?

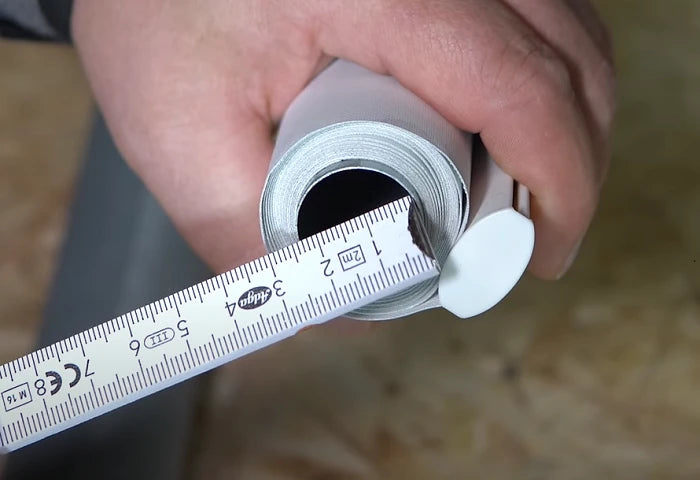

The ERBS15LE is suitable for roller blinds up to 2.5 kg in weight and 2 m in width. It is compatible with tube diameters of 17 mm, 24 mm and 28 mm (±0.5 mm).

How long does the battery last?

Depending on how often it is used, the battery lasts for about a month before it needs to be recharged. A full charge usually takes only a few hours.

Which control options is the motor compatible with?

You can control the motor flexibly via a wireless remote control or integrate it into your smart home via a control center. Both options can also be used in parallel.

Can I control multiple blinds at the same time?

Yes, with one handheld transmitter you can assign multiple motors to one channel. Multiple motors can be controlled simultaneously and grouped together via the Connector app.
