230V Roller Motor EYAS25LE

€94,90

Tax included

230V roller motor with integrated voltage converter - no additional transformer required.
Suitable for roller blinds up to 4.5 kg in weight and 2.5m in width.
Versatile application – ideal for large roller blinds, double roller blinds or home cinema systems, including adapters for 28 mm and 35 mm shafts.
Variable control – can be used optionally via radio hand transmitter or smartly via a control center.
Quiet operation and chain-free operation for more comfort and child safety.

Adapter diameter

35 mm 28-29 mm

Product variants

Description

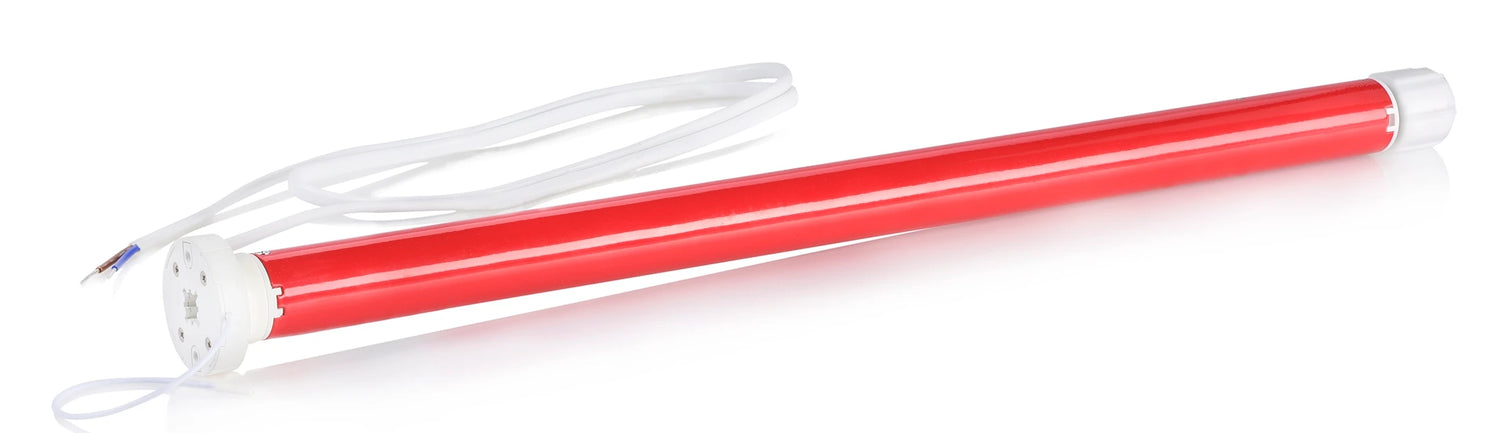

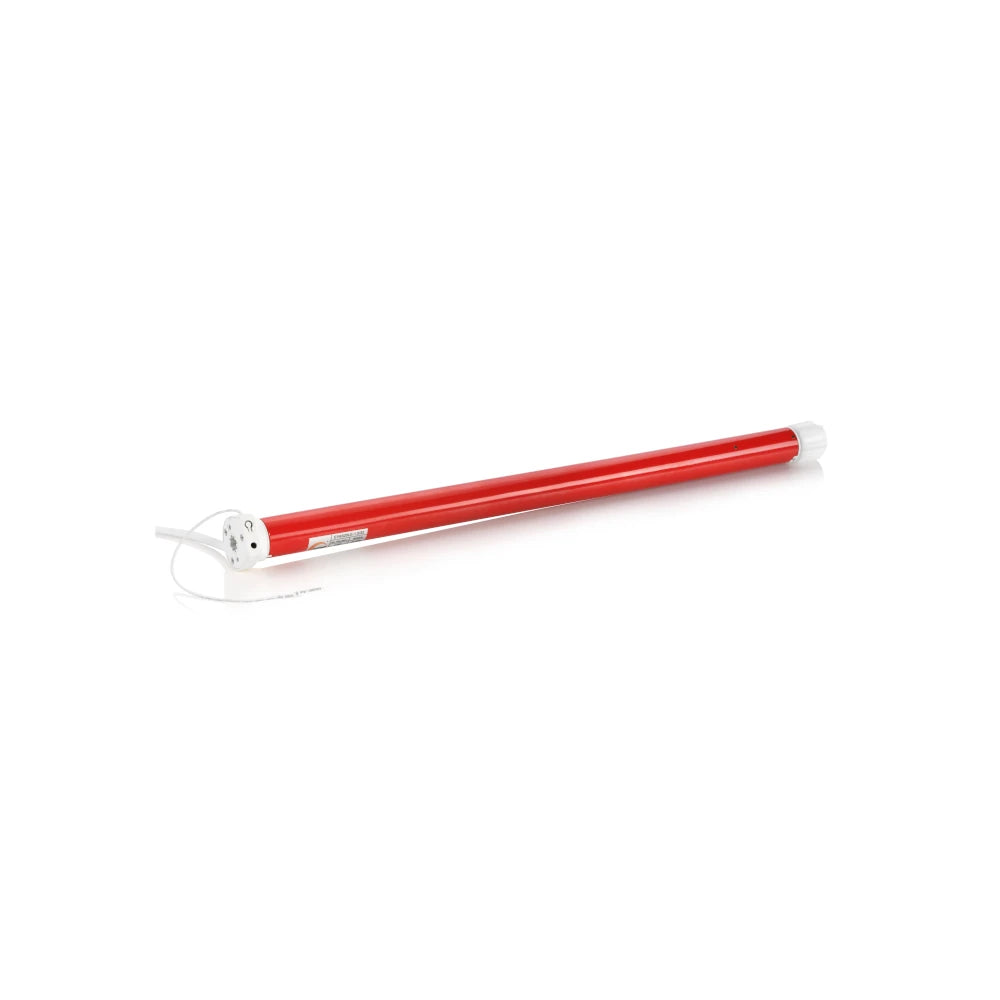

Compact tube motor for electric roller blinds

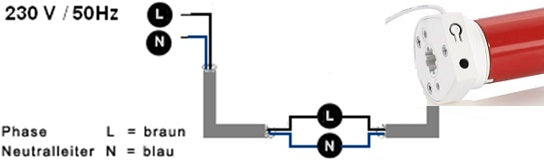

The EYAS25-LE is the ideal solution for the electric retrofitting of roller blinds, double roller blinds or home cinema systems. With its integrated voltage converter, the motor can be connected directly to the mains power supply (220/230 V) – an additional transformer is not necessary. Despite its compact length of only 50 cm, it effortlessly moves roller blinds up to 2.5 meters wide and weighing 4.5 kg.

Flexible control and precise operation

The tubular motor allows for both individual and group controls and offers a favorite position for frequently used settings. Thanks to the millimeter-precise end position adjustment, roller blinds can be positioned exactly. Various remote controls – from a simple 1-channel solution to a 15-channel remote control with display – offer additional comfort.

Smart Home Integration for More Possibilities

In conjunction with a Siro control center, the EYAS25-LE can be conveniently operated via the Connector app or voice control. Compatible with Amazon Alexa, Google Home, Apple Siri and IFTTT, the motor seamlessly integrates into your smart home. This allows you to enjoy full control – whether via smartphone, tablet or voice command.

Safe, quiet and comfortable

The chain-free operation ensures greater child safety, while the quiet operation makes the motor particularly suitable for bedrooms or home theaters. With bidirectional technology, you can receive feedback on the current position of your blinds at any time – even when you are on the go.

Versatile applications and extensions

The tube motor is suitable for roller blinds with an inner shaft diameter of 27 mm or more and is compatible with common models, such as Victoria M Premium roller blinds. Two suitable adapters (28 mm and 35 mm) are already included. For even more automation, the motor can be combined with a Siro sun sensor to reliably protect rooms from overheating.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* No guarantee given

Product details

Scope of delivery

1x Rollomotor
1x selected adapter set
1x Metal PIN-Drive
Rollo mounting hardware not included.

Technical Details

Length: 455mm
Weight: 388g
Motor diameter: 25mm
Protection rating: IP20
Power supply: 100-240V
Torque: 1.5 Nm
Speed: 32 RPM
Power: 13W
Current consumption: Max 0.3 A

Instructions

Instruction manual

Rollomotor adapter

Smart Blind Adapters: Overview

We offer a clear selection of blind motor adapters, which are necessary for use with different blind tubes. We do not offer custom adapter manufacturing. The inner diameter of the blind tube is measured as shown here:

Adapter 1: 17mm

Available for blind motor: ERBS15LE

Adapter 2: 19mm

Available for blind motor: ESD1624

Adapter 3: 24mm

Available for blind motor: ERBS15LE

Adapter 4: 27mm

Available for blind motor: ERBS15LE

Adapter 5: 28mm

Available for blind motor: ERBS25LE, EYAS25LE

Adapter 6: 35mm

Available for blind motor: ERBS25LE, EYAS25LE, ESD2524

Smart retrofitting via Siro Smart Hub

Using the Connector app, you can connect the Siro control center directly to your smartphone or tablet and define individual scenarios, automations, and time-controlled processes for your electric roller blinds. The roller motor can then be seamlessly integrated into leading smart home ecosystems – including Apple Siri, Google Home, Amazon Alexa, and IFTTT. This allows you to control your roller blinds not only via the app, but also conveniently by voice command – for an even smarter and more efficient home.
